APL-510 M2/NO High Grade Flame-proof Valve Position Indicator

The APL-510 series of high grade flame-proof valve position indicator provides high-performance and reliable products for high-risk situations. The die cast aluminum housing and polyester coating is durable, and the housing meets E Ex standards.


FEATURES:

(1) Two dimensional visual indicator with high contrast color design, allowing for full angle viewing of valve position.
(2) Complies with NAMUR standards to maximize interchangeability.
(3) Anti detachment bolt, the bolt is attached to the upper cover during disassembly and assembly without falling off.
(4) Die cast aluminum alloy shell, polyester coating.
(5) Spring loaded cam, can be adjusted without tools.
Images
VIDEO
SPECIFICATION

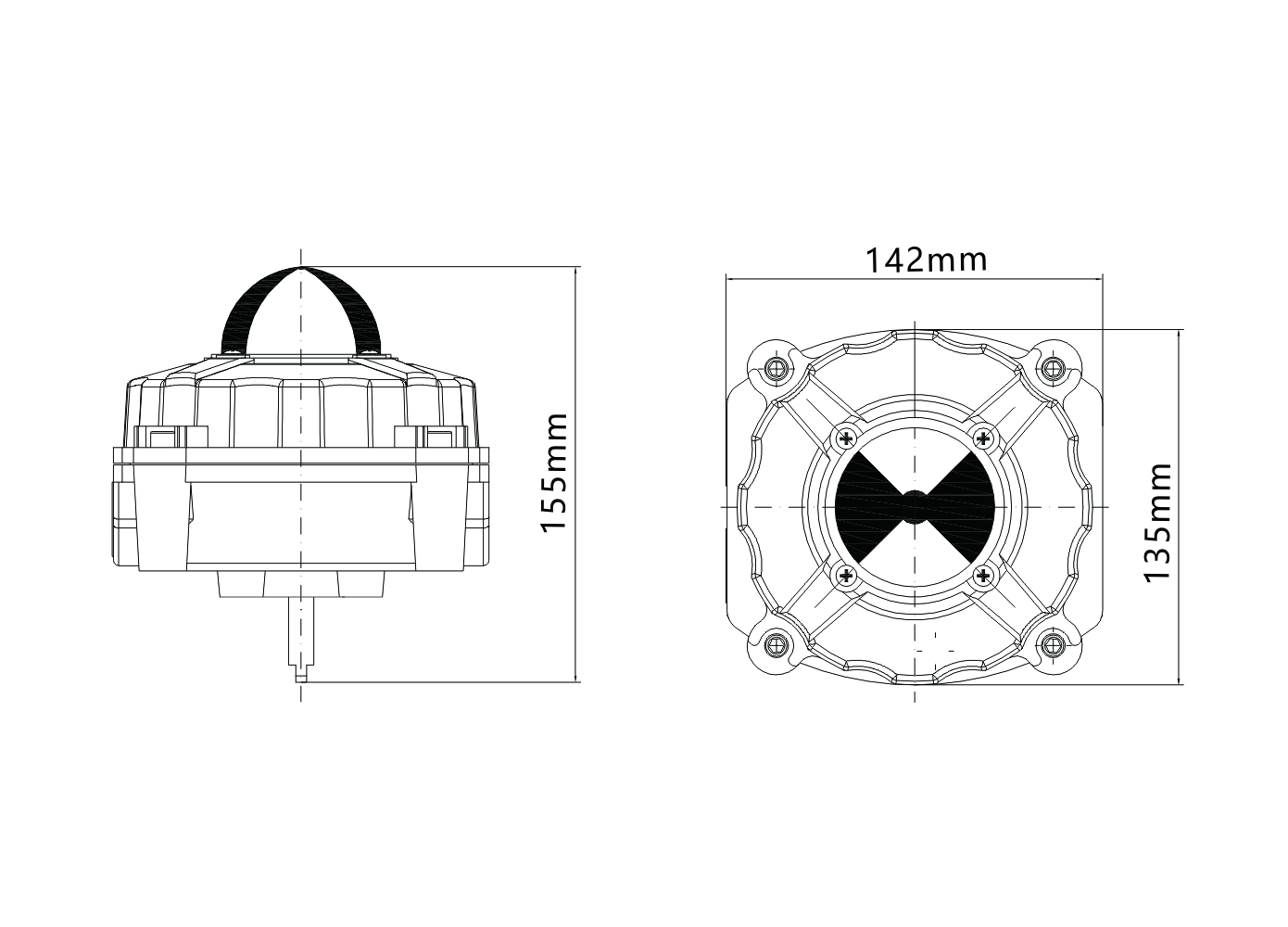

DRAWINGS
MODEL
DOCUMENTS
Switch type Mechanical switch, Proximity switch
Connection standard Complies with NAMUR standard
Material Aluminum alloy
Ambient temperature -25~85℃
Protection grade IP67
Explosion-proof grade Ex db II CT6 Gb
Electrical connection 2-G3/4'’
