Clutch Type Valve Decelerator-Manual Override-

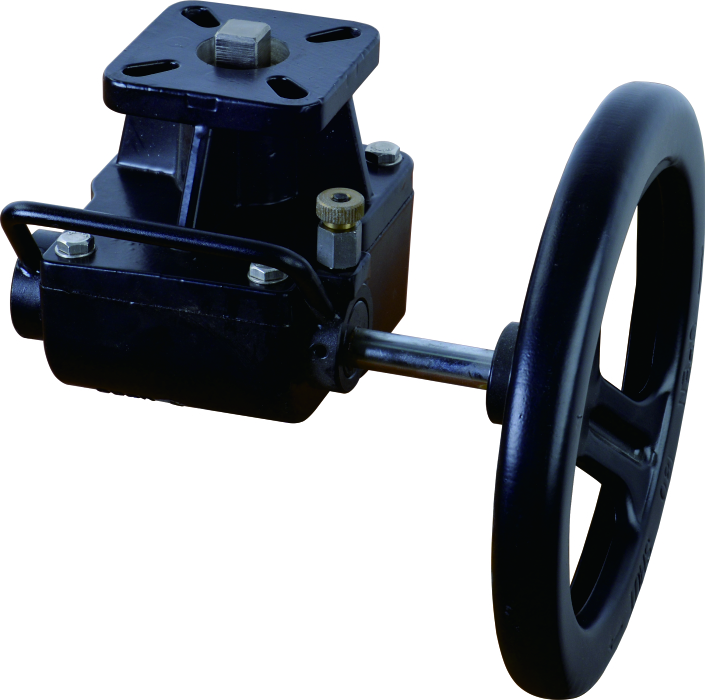

Clutch Type Valve Decelerator

This manual operating mechanism is used in conjunction with pneumatic actuators and is the main component of the automation control system. It is mainly used for manual drive of butterfly valves, ball valves, etc. with a 90 ° angle stroke for opening and closing. It can also be used in other automatic control mechanical products that require manual driving.

FEATURES:

(1) Small size, light weight, reasonable design, and innovative style.
(2) Product serialization, output torque parameters can be matched and combined conveniently with pneumatic actuators and various valves.
(3) The KH series connection complies with the IS05211 connection standard. The upper and lower protrusions are square tenons, and the lower part is square holes; There are multiple keyways in the inner holes of the 320:1 and 450:1 connection of the high torque mechanism, so that users can choose the corresponding positions of this product and the valve body according to their needs.
(4) Lift the limit pin and rotate the eccentric device 180 ° or 90 ° to automatically limit the position, achieving pneumatic operation; On the contrary, achieve manual operation.
(5) When the product leaves the factory, it is equipped with special lubricating grease, and after assembly with valves and pneumatic actuators, it is completely sealed. It can be dust-proof and waterproof, and the protection level is IP65

Images

VIDEO

SPECIFICATION

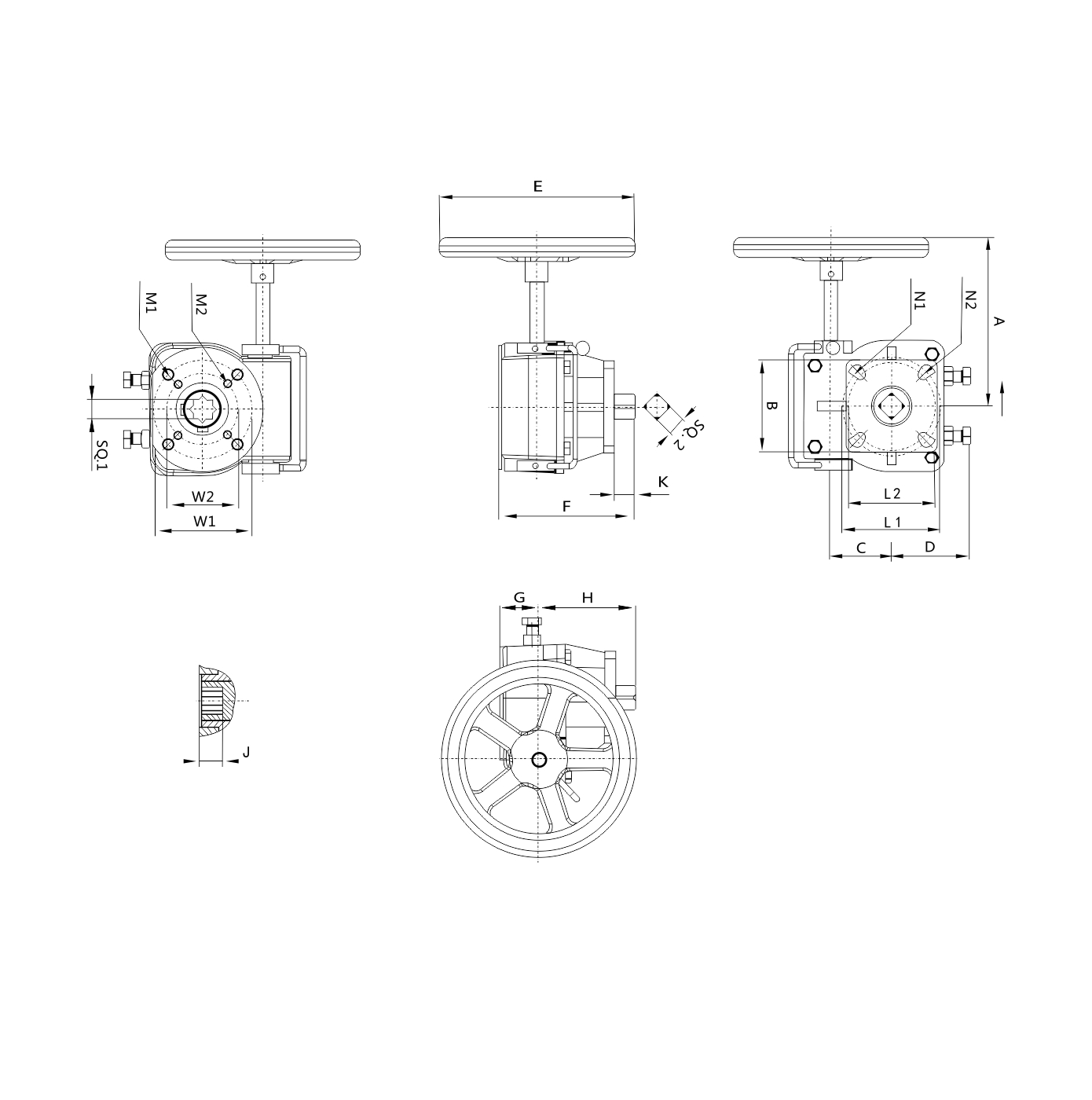

DRAWINGS

MODEL

DOCUMENTS

Operation Instructions
①The bottom surface of the manual mechanism is connected to the valve, the bracket surface is connected to the cylinder, the valve shaft fits through the inner hole of the worm gear, and the square of the valve shaft end fit with the square hole of the cylinder. (Working process: When pneumatic, the cylinder drives the valve shaft and worm gear to rotate simultaneously. When manual, the worm and worm gear mesh together, driving the valve shaft to rotate, and the cylinder piston follows).
②When turning the handle to worm gear reunion, there will be a phenomenon of teeth collision, which can be closed by turning the handwheel by one angle. When the operating handle is turned into place, the limit rubber nut needs to be tightened.
③Unscrew the limit rubber nut, place the handle in the reunion position, operate manually, and pneumatic operation can't achieve. Rotate the handle to seperation, the worm gear and worm are disengaged, achieving pneumatic operation. It is necessary to rotate the handle back and forth to ensure the correct meshing of the worm gear and worm.

TITLE	TYPE	FORMAT	LANGUAGE	OPERATION
Clutch Type Valve Decelerator	DOCUMENTS		EN	DOWNLOAD
