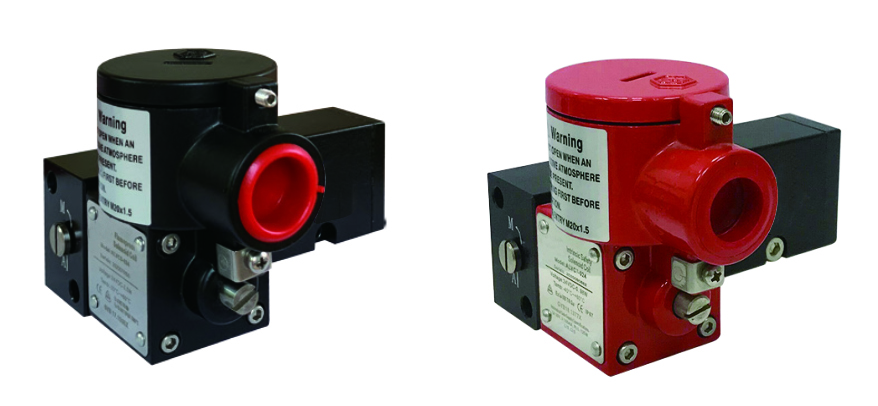

The series of solenoid valve is high-performance pneumatic solenoid valve that is carefully polished and manufactured by continuously introducing advanced pneumatic control technology, electrical explosion-proof technology, and original patented technology from Europe and America. The valve body adopts advanced static sealing technology, with long service life and strong cold resistance; The explosion-proof coils designed and produced can be used in explosive and high-risk environments; Low-power solenoid valves within 0.7W and low-temperature solenoid valves for cold environments down to -50℃ can be customized. This series of pneumatic solenoid valves can be used in almost any hazardous location and any natural environment.
FEATURES:
| Model | B09310F2 |
| Valve body material | Aluminum alloy |
| Sealing | NBR |
| Material of parts in contact with fluid | Aluminum, NBR |
| Connection | SS304 |
| Function and work mode | Two Position Five Way |
| Air port size | Inlet=Outlet=Exhaust=G1/4'' (NPT optional) |
| Flow rate | 1377L/M, CV =1.4 (Effective throttling area 25mm² ) |
| Installation and connection | Namur standard (24×32) surface mount type |
| Manual operation | The valve body end cover is equipped with manual screws, which can manually operate the solenoid valve, A-automatic; M-manual. |
| Working medium | Filtered and dried compressed air with particles smaller than 40μm |
| Working pressure | 2-8 Bar |
| Applicable ambient | Indoor and outdoor |
| Medium temperature | -5℃~80℃ (Not frozen) |
