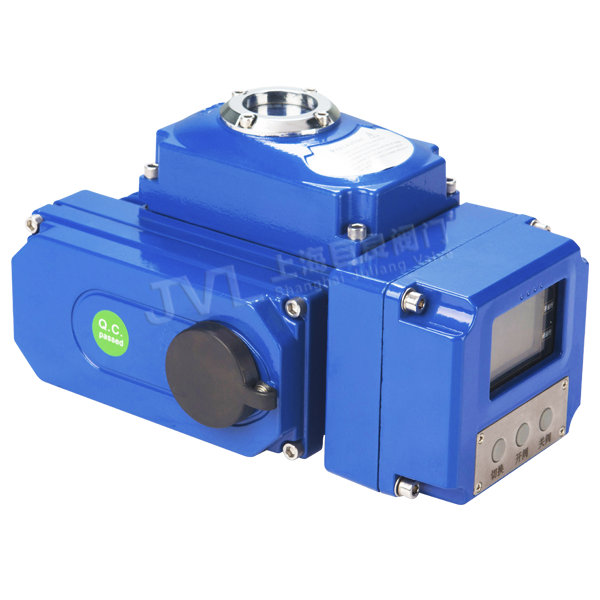

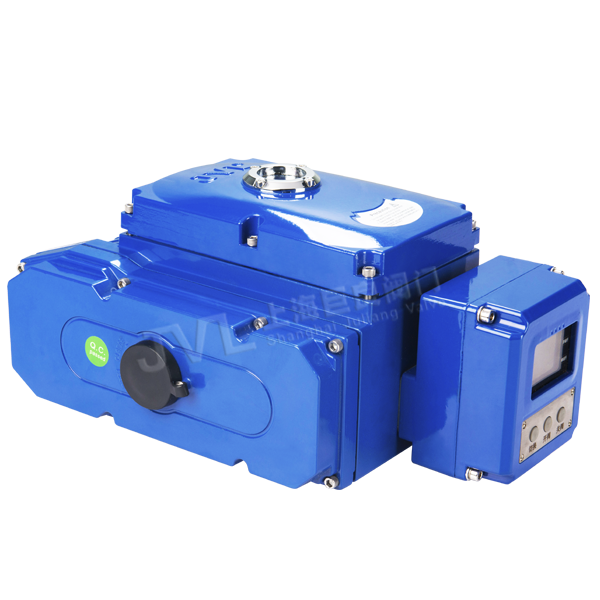

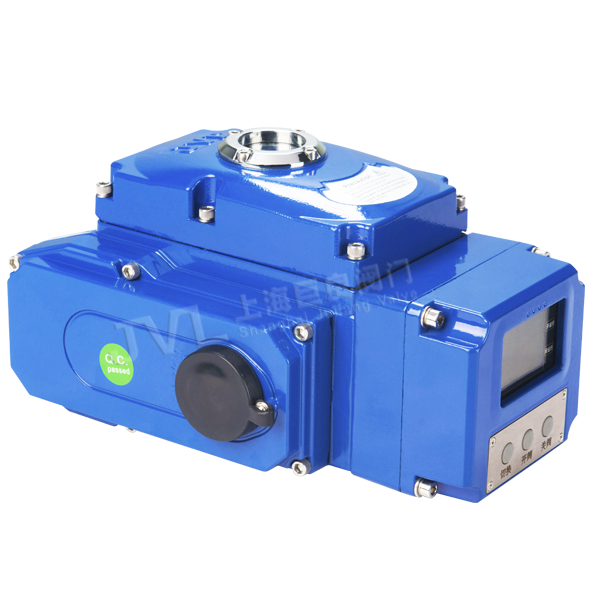

JLA series electric actuators

The JLA series electric actuators are used to control valves and other similar products that rotate from 0 ° to 270 °, such as butterfly valves, ball valves, damper valves, baffle valves, plug valves, louver valves, etc. They can be widely used in various industries such as petrochemicals, water treatment, ships, papermaking, power plants, heating, light industry, etc. It uses a 380V/220V/110V AC power supply as the driving power, and a 4-20mA current signal or a 0-10VDC voltage signal as the control signal, which can make the valve move to the desired position and achieve automatic control. The maximum output torque reaches 4000N. M.

FEATURES:

The shell is anodized and coated with polycarbonate powder, with high corrosion resistance and a waterproof rating of IP65.
Fully enclosed squirrel cage motor, small size, high torque, low inertia force, F-class insulation grade.
The handwheel design ensures safety, reliability, labor-saving, and small size.
Position indicator - easy to observe the position of the valve, avoid sedimentation, and facilitate observation. It is designed with a convex lens.
Good sealing performance. Its protection level is IP65.
