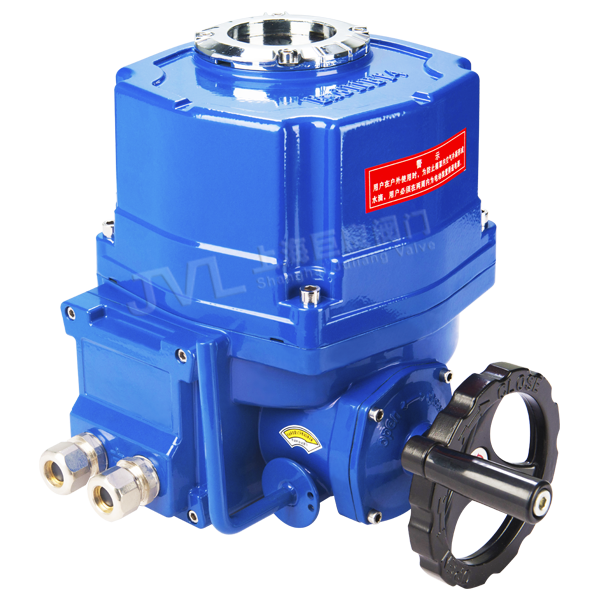

JLB series electric actuators

The JLB series electric actuators are used to control valves and other similar products that rotate from 0 ° to 270 °, such as butterfly valves, ball valves, damper valves, baffle valves, plug valves, louver valves, etc. They can be widely used in various industries such as petrochemicals, water treatment, ships, papermaking, power plants, heating, building automation, light industry, etc. It uses a 380V/220V/110V AC power supply as the driving power, and a 4-20mA current signal or a 0-10VDC voltage signal as the control signal, which can make the valve move to the desired position and achieve automatic control. The maximum output torque reaches 4000N. M. (This product has obtained the CE explosion-proof certification and its quality is guaranteed.)

FEATURES:

The shell is anodized and coated with enzyme powder, with high corrosion resistance and a protection level of up to IP67
Fully enclosed squirrel cage motor, small size, high torque, low inertia force, F-class insulation grade
The handwheel design is safe and reliable, saving time and effort
Position indicator facilitates observation of valve position
Heaters and thermostats prevent condensation inside the chamber due to changes in ambient temperature
