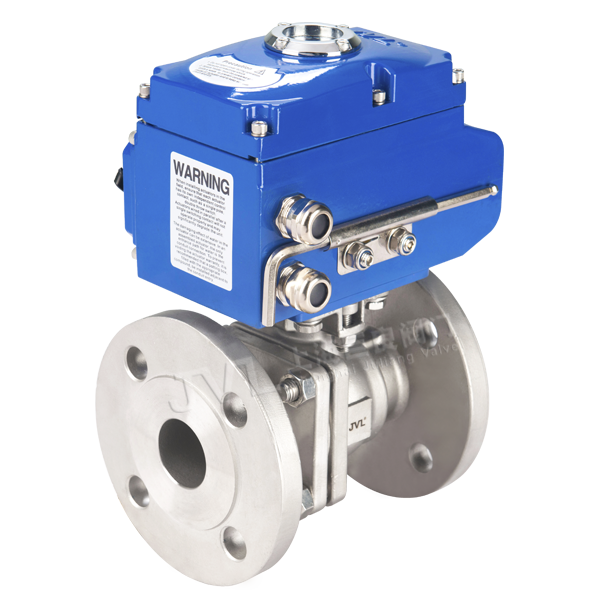

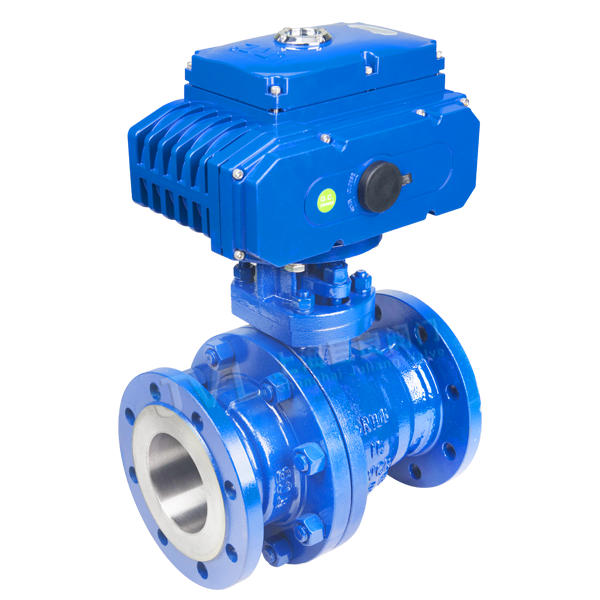

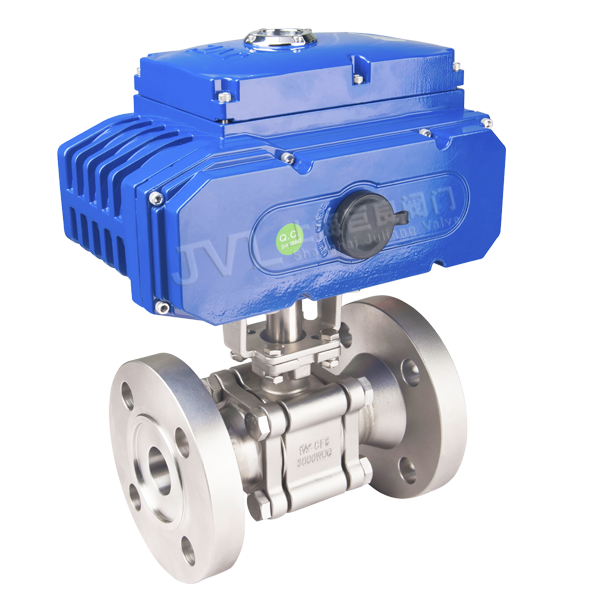

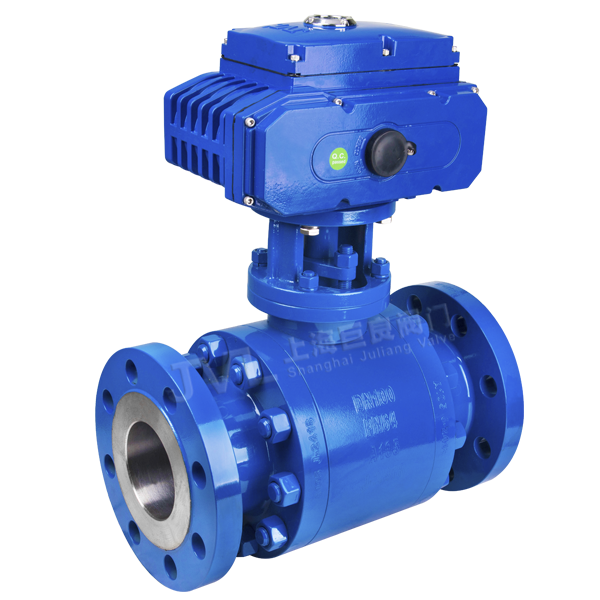

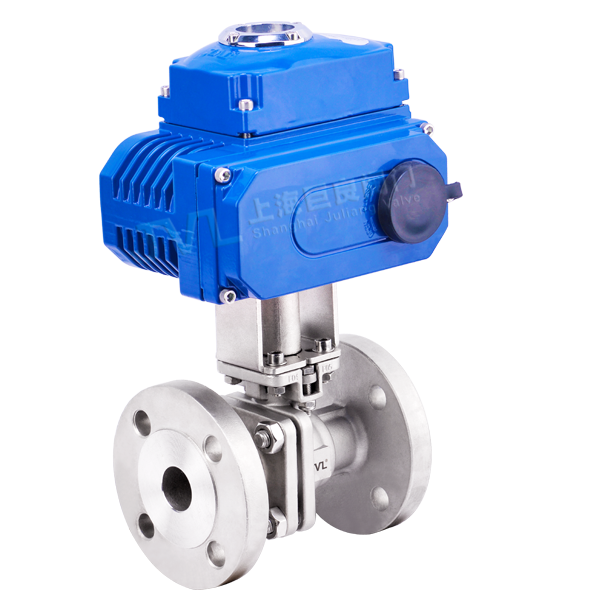

JL900-Q1 / Electric Flanged Ball Valve

The JL900-Q1 electric ball valve is an important implement in the industrial automation control system. It can be controlled centrally over a long distance to meet the needs of computer programmed control. It is widely used in petroleum refining, long-distance pipeline, chemical industry, papermaking, pharmaceuticals, water conservancy, electric power, municipal government, iron and steel and other industries. It is mainly suitable for piping system of light structure, low-pressure shut-off (small differential pressure) and corrosive medium. Ball valves can also be used in cryogenic (deep cooling) devices and piping systems. In the oxygen pipeline system of the metallurgical industry, it is necessary to use ball valves with strict degreasing treatment. When the main line of the oil pipeline and gas pipeline needs to be buried underground, full bore welded ball valve is needed. In the requirements of regulating performance, it is necessary to use the special structure ball valve with a V-shaped opening. In the fields of petroleum, chemical, electric power and urban construction, for pipeline system of working temperature above 200 degrees, hard metal sealed ball valve can be chosen.

FEATURES:

The castings have passed German TUV certification and are precision cast with silica sol, resulting in a delicate and beautiful appearance
Fireproof and anti-static design, Japanese Daikin M111 sealed, ex-work torque balanced
Unique valve seat spring design for smoother opening and closing
Sinking gland design, with adjustable compression amount for the packing part
V-type packing design ensures packing sealing performance
ISO5211 high mounting international standard, compatible with domestic and foreign electric/pneumatic actuators
Original manufacturer with large-scale mass production capacity
