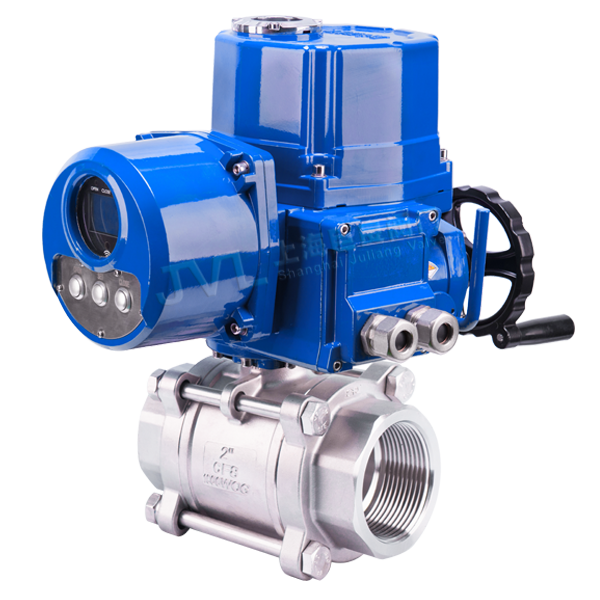

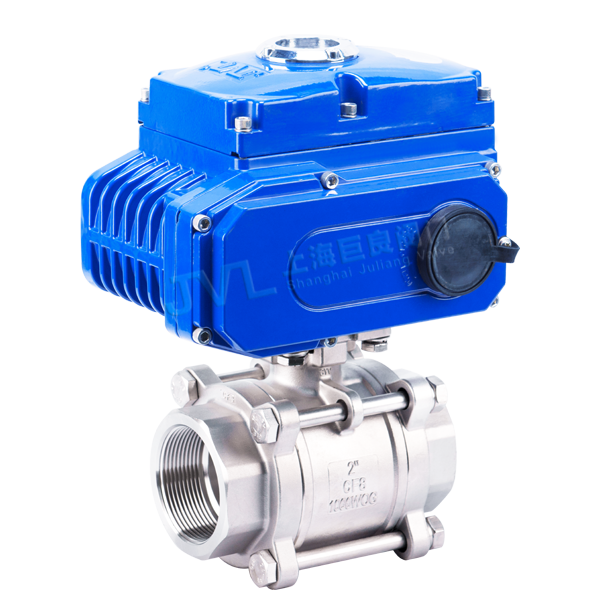

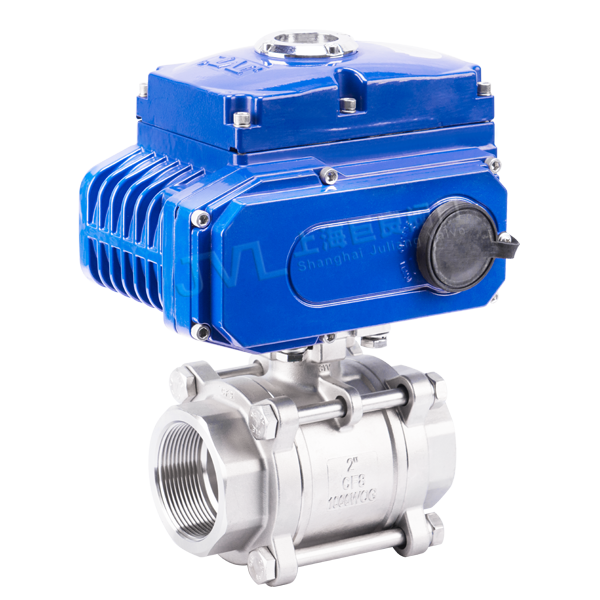

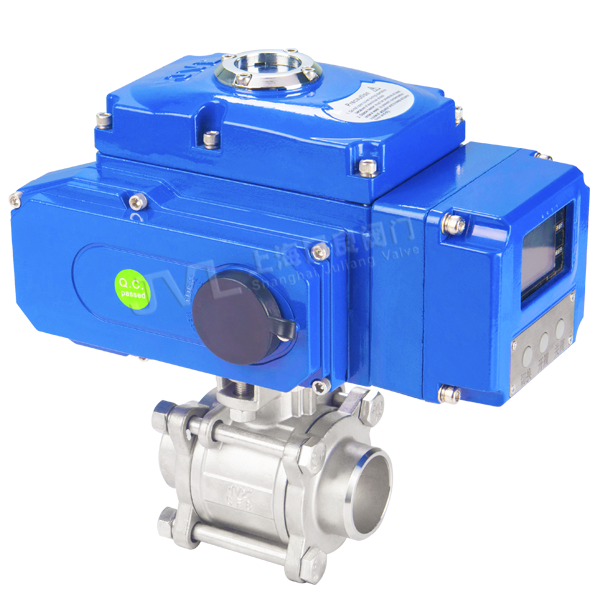

The JL900-Q1 electric ball valve is an important implement in the industrial automation control system. It can be controlled centrally over a long distance to meet the needs of computer programmed control. It is widely used in petroleum refining, long-distance pipeline, chemical industry, papermaking, pharmaceuticals, water conservancy, electric power, municipal government, iron and steel and other industries. It is mainly suitable for piping system of light structure, low-pressure shut-off (small differential pressure) and corrosive medium. Ball valves can also be used in cryogenic (deep cooling) devices and piping systems. In the oxygen pipeline system of the metallurgical industry, it is necessary to use ball valves with strict degreasing treatment. When the main line of the oil pipeline and gas pipeline needs to be buried underground, full bore welded ball valve is needed. In the requirements of regulating performance, it is necessary to use the special structure ball valve with a V-shaped opening. In the fields of petroleum, chemical, electric power and urban construction, for pipeline system of working temperature above 200 degrees, hard metal sealed ball valve can be chosen.
FEATURES:
Simple structure and easy disassembly
Small opening and closing torque, high reliability, and long service life
Ball valve high platform structure, ISO5211 connection standard, convenient installation
Dual directional sealing, dual pressure bearing, automatic compensation, self-cleaning function
Fireproof and anti-static structure, in accordance with standard specifications such as API607 and GB/T6899
Suitable for suspensions of fibers and small particles as well as viscous medium
| Nominal diameter | DN10~100mm |
| Nomial pressure | 1.6~6.4Mpa (If you need other pressure standard, please specify when placing order) |
| Valve body material | SS304 (P), SS316 (R) |
| Sealing material | PTFE (F), Polyphenylene (PPL) |
| Medium temperature | W2: -20~150℃ W3: -20~250℃ |
| Connection mode | Female thread, Flange, Clamp, Butt weld, Socket weld |
| Electric actuator | JLA Series, JLB Series, Imported actuator series |
| Control mode | Standard switch type, Integral regulating type, Integral switch type, Bus type |
| Note | 1.The valve body can be cast or forged, and can be devided into three piece or two piece types; The thread types include BSPT thread, G thread, and NPT thread. |
| 2.Other special sealing materials or interfaces can be designed and selected according to customer requirements. |
