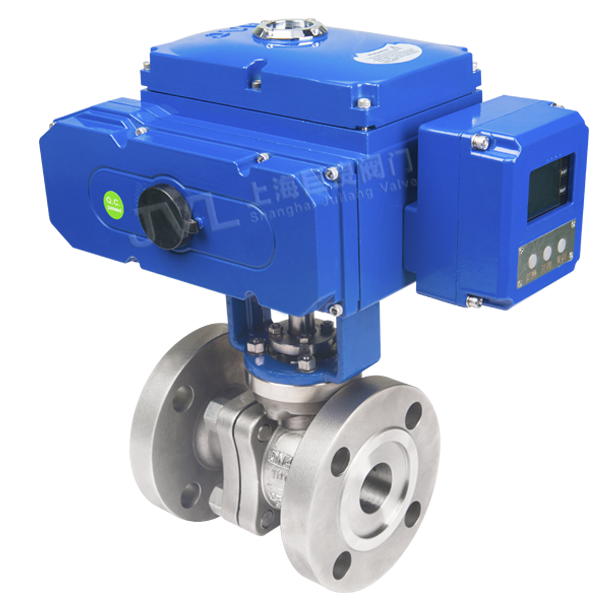

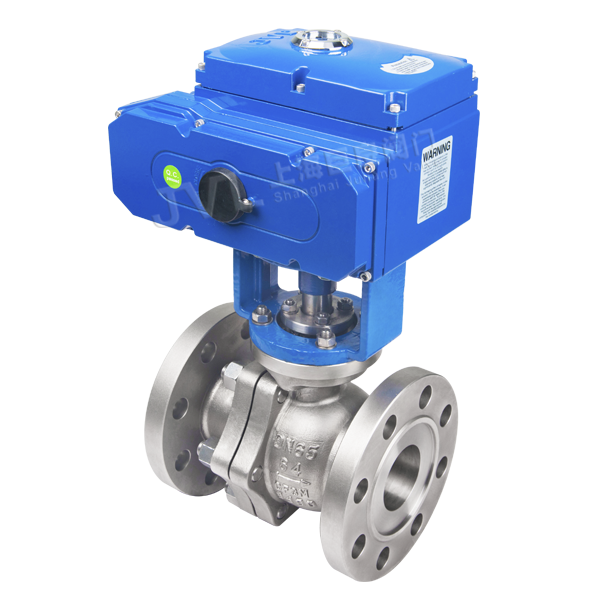

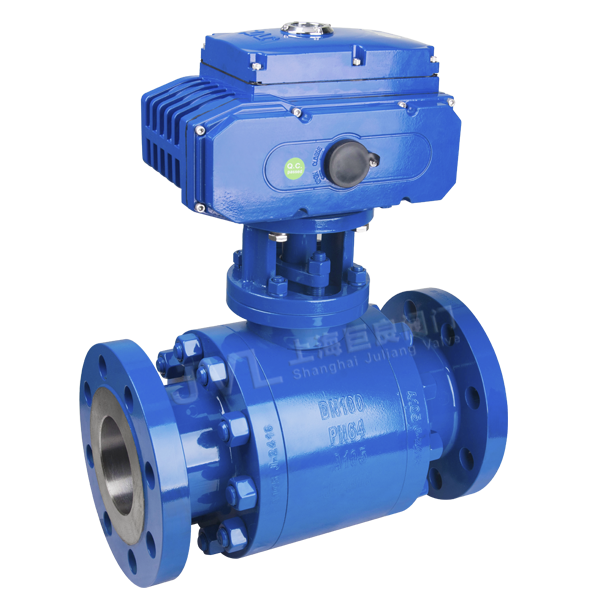

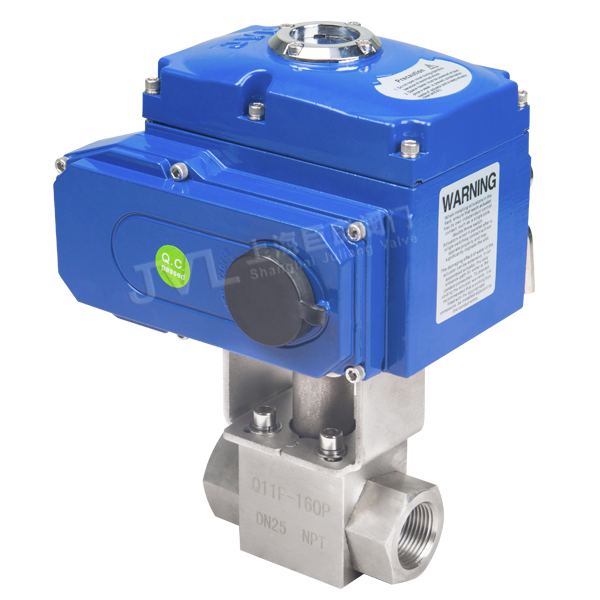

The JL900-Q1 electric ball valve is an important implement in the industrial automation control system. It can be controlled centrally over a long distance to meet the needs of computer programmed control. It is widely used in petroleum refining, long-distance pipeline, chemical industry, papermaking, pharmaceuticals, water conservancy, electric power, municipal government, iron and steel and other industries. It is mainly suitable for piping system of light structure, low-pressure shut-off (small differential pressure) and corrosive medium. Ball valves can also be used in cryogenic (deep cooling) devices and piping systems. In the oxygen pipeline system of the metallurgical industry, it is necessary to use ball valves with strict degreasing treatment. When the main line of the oil pipeline and gas pipeline needs to be buried underground, full bore welded ball valve is needed. In the requirements of regulating performance, it is necessary to use the special structure ball valve with a V-shaped opening. In the fields of petroleum, chemical, electric power and urban construction, for pipeline system of working temperature above 200 degrees, hard metal sealed ball valve can be chosen.
FEATURES:
Full bore design, quick response, zero leakage
Fireproof and anti-static structure, silica sol precision casting, safe and reliable
Compliant with ISO5211 standard high mounting design and ultra long service life
Dual directional sealing, dual pressure bearing, automatic compensation, self-cleaning function
Suitable for medium with fibers, particles and high viscousity
| Nominal diameter | DN15~200mm |
| Nomial pressure | 1.6~42Mpa (If you need other pressure standard, please specify when placing order) |
| Valve body material | Carbon steel (C), SS304 (P), SS316 (R) |
| Sealing material | PTFE (F), Polyphenylene (PPL) |
| Metal hard seal (H), Hard alloy (Y) | |
| Medium temperature | W2: -20~150℃ W3: -20~250℃ W4: -29~425℃ |
| Connection mode | Flange, Butt weld, Female thread |
| Electric actuator | JLA Series, JLB Series, Imported actuator series |
| Control mode | Standard switch type, Integral regulating type, Integral switch type, Bus type |
| Note | 1.The valve body adopts forging technology, and can be divided into floating type, fixed type, and top mounted type; |
| Sealing is divided into soft seal and hard seal, with pressure resistance up to 2500 lb and temperature resistance down to -196 ℃ and up to 570 ℃. | |
| 2.Other special sealing material or special temperature can also be designed and selected according to customer requirements. |
