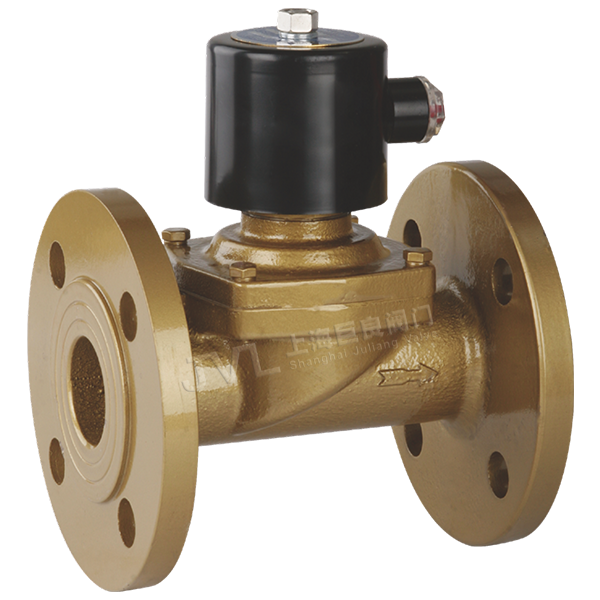

ZCH series zero pressure start diaphragm solenoid valve is used in various normal temperature and pressure situations, suitable for automatic control of pipelines with water, liquid, gas, and liquefied gas as the medium; Widely used in automation control systems for industries such as generator sets, diesel engines, solar equipment, food machinery, environmentally friendly water treatment, HVAC, agricultural machinery, emergency gas cut-off, industrial kilns, boiler burners, welding and cutting, and other related ancillary products and industries.
FEATURES:
Juliang top quality Highly skilled Zero pressure start
Wide application High quality Economically applicable

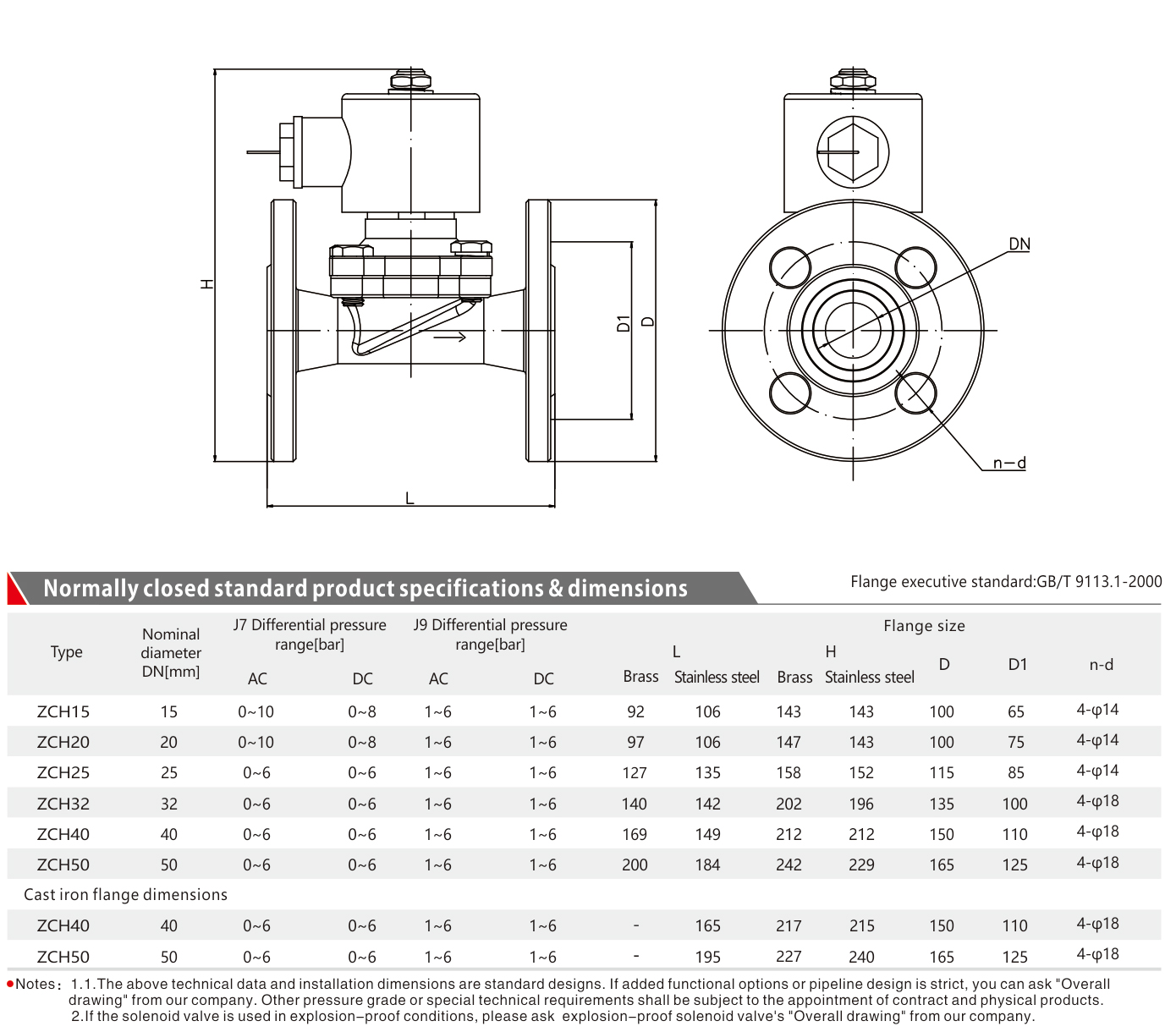

| Nominal diameter | DN15~50mm |
| Connection mode | Flange connection, executive standard GB/T 9113.1-2000 |
| Working principle | Distributed direct acting diaphragm type |
| Body material | Brass, cast iron, SS304 |
| Sealing material | NBR, FKM, other material please consult |
| Applicable medium | Water, liquid, gas etc. |
| Medium temp. | 1. -20℃~80℃ 2. -10℃~150℃ |
| Ambient temp. | Standard type: -20℃~60℃ |
| Installation method | Horizontal installation Coil vertical upward (other methods please consult) |
| Protection grade | Iron shell: IP54 Plastic seal: IP65 Encapsulation: IP65 Flameproof:BT4:IP54 |
| Note | Special working conditions can also be designed and manufactured according to the actual situation of the customer. |
