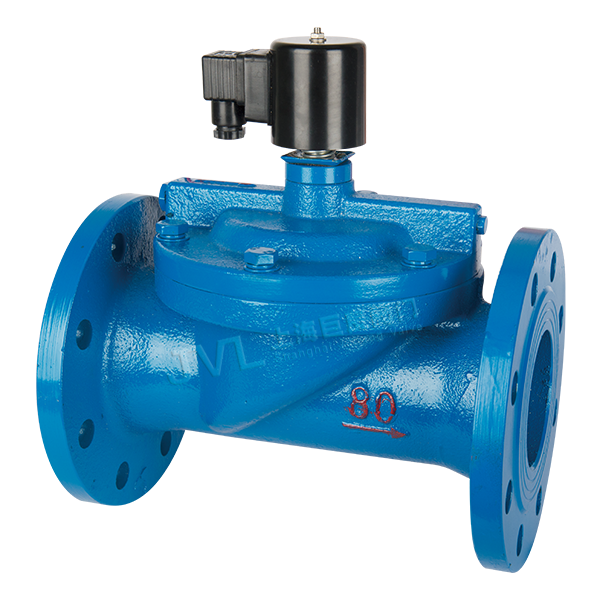

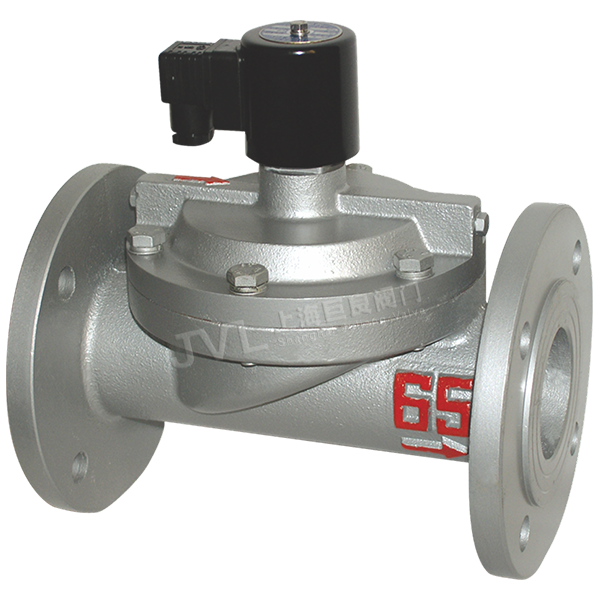

ZCSF series pilot flanged large diameter diaphragm solenoid valve, is used for automatic control of liquid, gas and other pipelines. Widely used in medical equipment, food machinery, agricultural machinery, analytical instruments, humidifiers, sulfur meters, water dispensers, bottle blowers, filling equipment, brewing equipment, generator sets, environmentally friendly water treatment, industrial kilns, boiler burners, welding and cutting, and other related ancillary products and industries.
FEATURES:
Domestic high quality Replacing import Simple structure Ultra long life
Supporting military High quality Recommended product Economically applicable

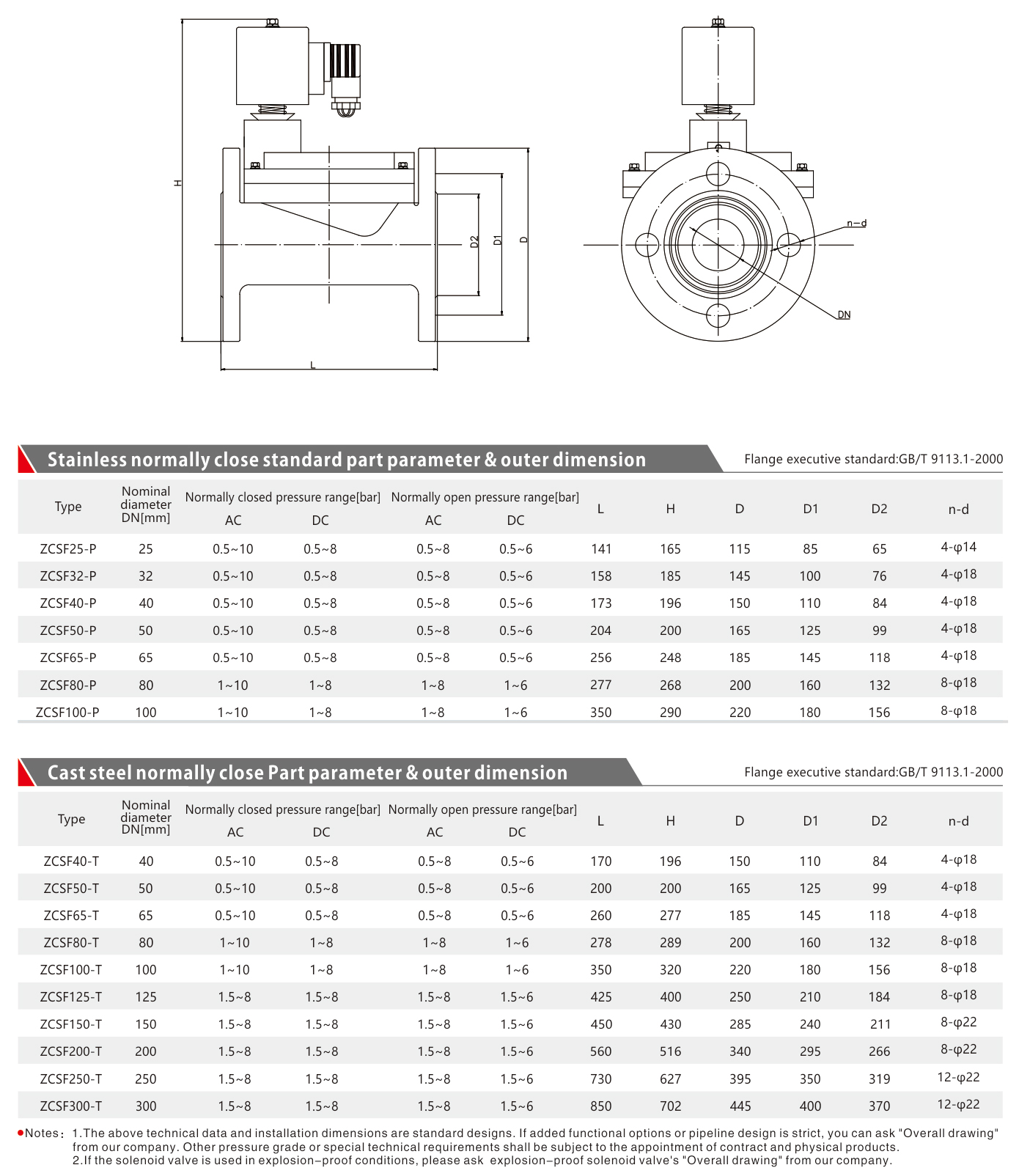

| Nominal diameter | DN25~300mm |
| Connection mode | Flange, executive standard GB/T 9113.1-2000 |
| Working principle | Pilot diaphragm type |
| Body material | Cast iron, SS304, can customize SS316(-R) |
| Sealing material | NBR, FKM, other material please consult |
| Applicable medium | Liquid, gas, oil etc. |
| Medium temp. | 1.-20℃~80℃ 2.-20℃~150℃ Others please consult |
| Ambient temp. | Standard type: -20℃~60℃ |
| Installation method | Horizontal installation Coil vertical upward (other methods please consult) |
| Protection grade | Plastic seal: IP65 Encapsulation: IP65 CT5:IP65 |
| Note | Special working conditions can also be designed and manufactured according to the actual situation of the customer. |
